Pulse Power /
High Voltage Capacitors

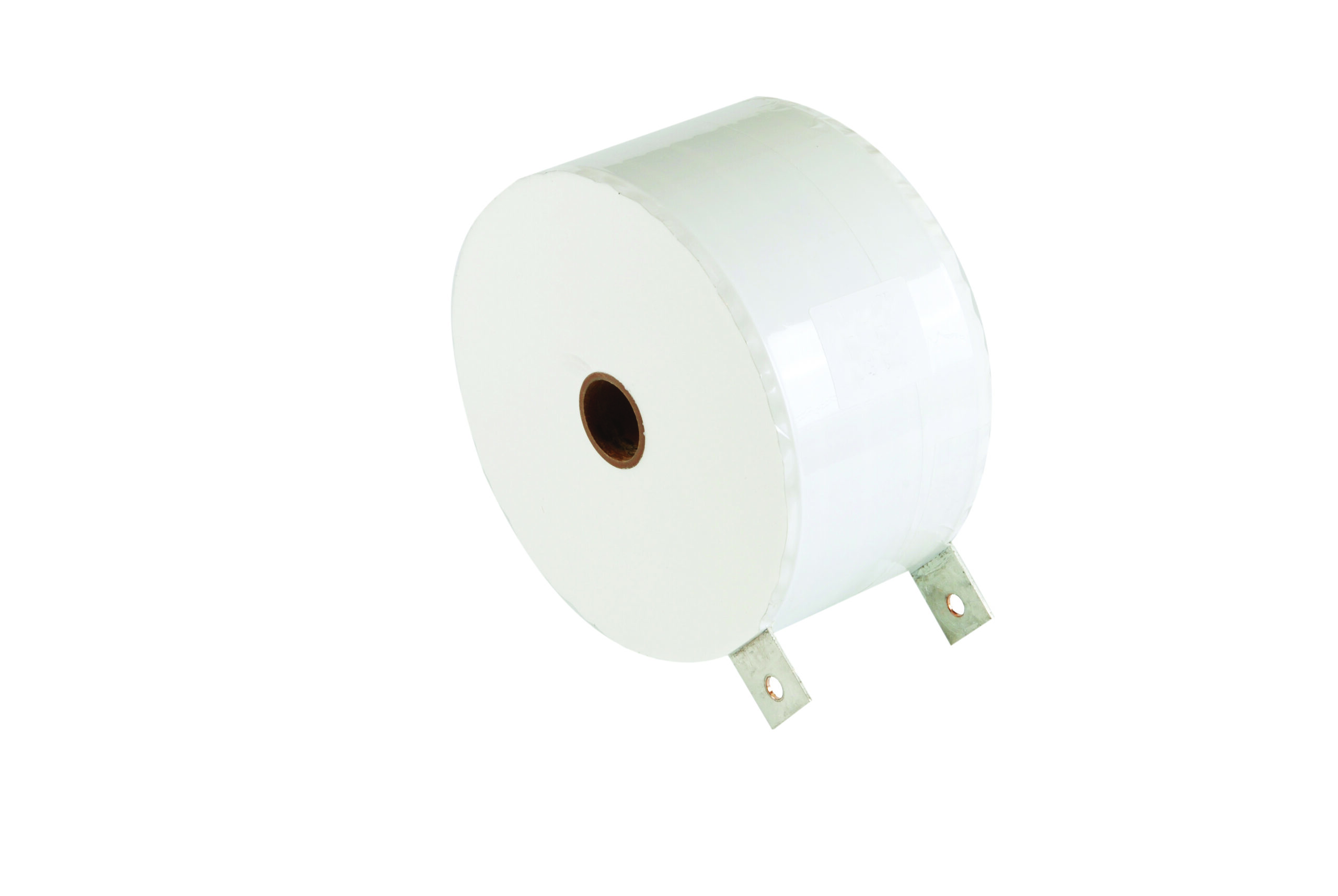

The Power Ring’s patented technology offers extreme energy storage and pulse current density.
Small and lightweight packaging with no oils or fluids.
Pulse Power /
Pulse Capacitors for Demanding Applications
The Advanced Conversion annular form factor winding enables an optimal aspect ratio where the diameter is greater than the height.
The resulting large end connection area supports very high peak current capability, while the lower height dramatically reduces the ESR. This greatly increases reliability under the harshest system conditions.
From FDA-approved applications (medical lasers) and test equipment to the extremes of Fusion power, these parts deliver the reliable and power-dense solution you need without sacrificing life. Up to 250,000 Peak Amps and over 1 million shot life is demonstrated and available.
We offer a variety of voltage and capacitance values for long-life pulsed power applications. Custom Terminal connections can be provided with minimal NRE and MOQ, and short lead time.
While individual capacitors are available up to 8kV, we can work with you to assemble a well-designed capacitor bank using these elements for much higher voltages up to 100kV.
The innovative hollow core construction offers unique mounting and connection possibilities.
Examples of standard products that should fit your needs are listed below. Most are available in stock either direct from Advanced Conversion or through one of our distributors.
Do you want to see how your needs can be addressed?
Once you are ready to advance your system ideas and needs to the next generation contact our technical team
or to ask for a quote at [email protected]
Also find below a list of frequently asked questions and answers.
Datasheets
| DC Volt. (Vdc) | CAP. RANGE (µF) | Series/Standard Part # | Height | Diameter Range | Peak Current Range (kA) |
|---|---|---|---|---|---|
| 750 | 500 – 5,000 | 771D | 3.35″ (85 mm) | 4.9″ – 13.6″ (126 – 352 mm) | 5.6 – 56 |
| 750 | 1,000 | 771D102 | 3.35″ (85 mm) | 6.5″ (165 mm) | 12 |
| 750 | 5,000 | 771D104 | 3.35″ (85 mm) | 13.9″ (352 mm) | 56 |
| 750 | 2,500 | 771D105 | 3.35″ (85 mm) | 10″ (255 mm) | 28 |
| 750 | 650 | 771D120 | 3.35″ (85 mm) | 5.4″ (138 mm) | 7 |
| 1,500 | 500 – 3,000 | 772D | 6.10″ (155 mm) | 6.5″ – 15″ (165 – 380 mm) | 11 – 69 |
| 1,500 | 3,000 | 772D102 (pdf) | 6.10″ (155 mm) | 15″ (380 mm) | 69 |
| 2,500 | 100 – 1,000 | 773D | 5.00″ (127 mm) | 5.25″ – 15″ (137 – 380 mm) | 6.7 – 68 |
| 2,500 | 1,000 | 773D103 | 5.00″ (127 mm) | 14.84″ (377 mm) | 68 |
| 2,500 | 500 | 773D104 | 5.00″ (127 mm) | 10.7″ (272 mm) | 34 |
| 2,500 | 100 | 773D105 (pdf) | 5.00″ (127 mm) | 5.25″ (137mm) | 10 |
| 3,500 | 100 – 650 | 774D | 6.23″ (158 mm) | 5.75″ – 13.7″ (146 – 368 mm) | 10 – 68 |
| 3,500 | 100 | 774D103 (pdf) | 6.23″ (158 mm) | 5.97″ (152 mm) | 10 |
| 3,500 | 140 | 774D107 (pdf) | 6.23″ (158 mm) | 6.65″ (170 mm) | 14 |
| 3,500 | 650 | 774D108 | 6.23″ (158 mm) | 13.7″ (350 mm) | 66 |
| 8,000 | 5-50 | 775D | 3.35″ (85 mm) | 4.5″ – 14″ (115 mm – 355 mm) | 5.8-10 |
| 8,000 | 5 | 775D104 (pdf) | 3.35″ (85 mm) | 4.70″ (119.7 mm) | 10 |

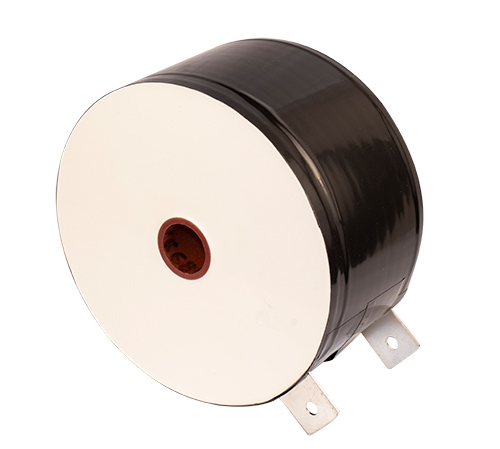

| 8,000 | 10 | 775D103 (pdf) | 3.35″(85 mm) | 6.35″ (161.3 mm) | 20 |
| 8,000 | 17 | 775D102 (pdf) | 3.35″ (85 mm) | 8.50″ (215.9 mm) | 34.5 |
| 8,000 | 50 | 3.35″ (85 mm) | 14.07″ (355 mm) | 100 |
FAQs
What is the highest voltage rating for these parts?
8 kV per individual capacitor with no “de-rating” typically needed.
Can I combine capacitors for higher voltage or current rating?
Yes and our applications engineering team can assist you with these designs.
What is the maximum peak current of these capacitors?
Up to 250,000 A peak current is possible.
What is the greatest capacitance value of these capacitors?
Up to 10,000 μF is possible.
How do I install these capacitors?
The capacitors can be custom ordered with a mountable bracket or by using the available core hole and washers.
What is the typical lifetime of these capacitors?
Lifetime is very dependent on repetition rate, voltage swing, and peak current. It is also affected by the environmental temperature. Many of our capacitors have millions of shot life demonstrated in demanding applications. Please contact our applications engineering team to discuss your application lifetime needs.
