The next step beyond standard power rings with universal busbars, the test kits integrate surface-mounted capacitors on optimized busbars, connected to switch modules for efficient inverter designs.
The Advanced Conversion annular form factor winding technology is well known for enabling optimal DC link sizing for industry-leading performance, with long life and low ESR in the range of 100 micro-Ohms.

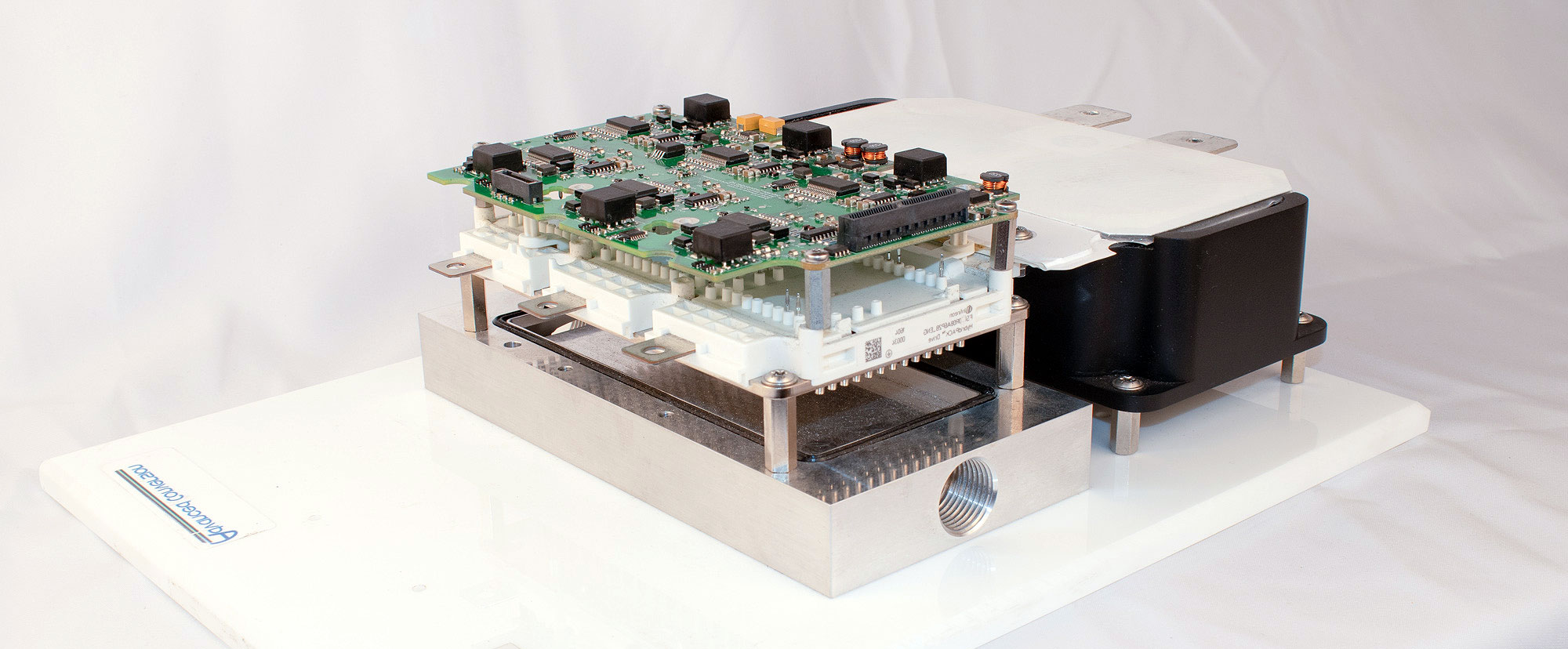

However, the round shape can be a challenge to implement. Therefore we have designed a family of complete DC Link/Busbar integrated systems that demonstrate the optimal connection to the Infineon HybridPACK™ “Six Pack” style modules. They also match conveniently next in size and height. This makes the layout easy for tests or final inverter design. These kits provide an ESL of 8nH and support inverter power levels of up to 200kW peak.
We offer a complete portfolio of ways to implement an optimized DC Link solution with any of the Six Pack layout switch modules (Si or SiC). Voltages range from 500V to 900V (continuous) and they match up perfectly with all of the design configurations supplied by a number of major switch suppliers, including OnSemi (VE Trac™), ST Power, or Wolfspeed (certain models).

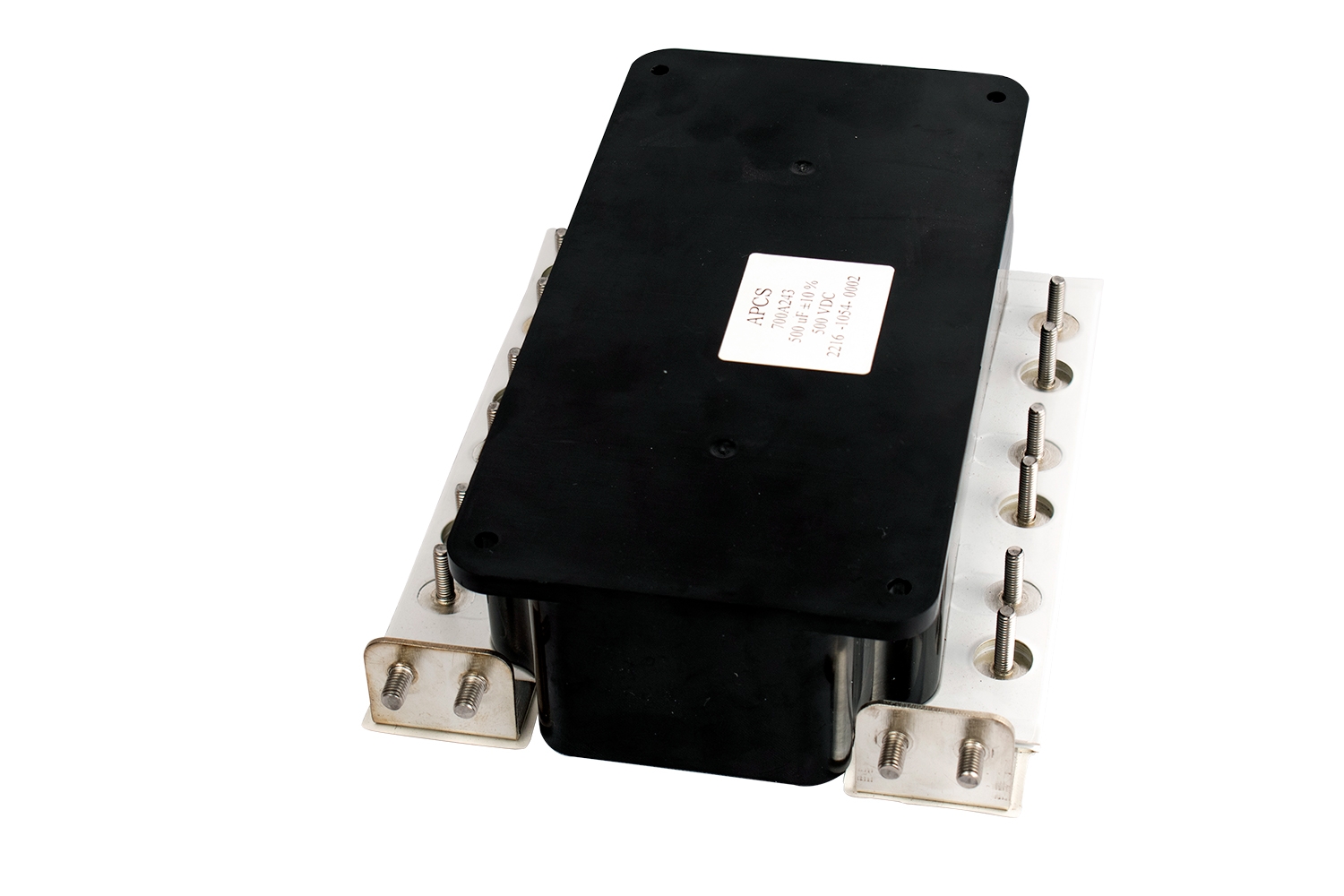

Please note our example below where the 700A243 allows for one Compact DC Link to support two Switch Module Six Packs enabling a Left – Right Drive system, with one DC Link cap.
Many examples of standard DC Link Test Kits for the Infineon HybridPACK™ and other SIX PACK modules are listed here.
Most are available in stock either direct from Advanced Conversion or through one of our distributors.
Do you want to see how your needs can be addressed or which standard test kit may be right for you?
Once you are ready to advance your system ideas and needs to the next generation contact our technical team
or to ask for a quote at [email protected]
Also find below a list of frequently asked questions and answers.
| DC Volt. (Vdc) | CAP. (µF) | Test kit # | Operating Temperature (°C) |
|---|---|---|---|
| 500 | 500 | 700A186 (pdf) | 105°C | 500 | 500 | 700A243 (pdf) | 105°C |
| 750 | 260 | 700A245 (pdf) | 105°C |
| 750 | 320 | 906A105 (pdf) | 125°C |
| 900 | 135 | 906A104 (pdf) | 125°C |
*IGBT modules sold separately by other distributors.
900 V continuous which matches nicely with 1200 V switch modules.
The peak current is highly dependent on the cooling management of the AC and DC on the busbar. When optimized 100 A peak is possible wihtout damage.
The test kits are designed to be a perfect fit with the switch module. Only fasteners (not supplied) are required.
Yes, however the peak and continuous current will not be maximized.
10-20,000 drive cycle hours.
Changes can always be made to accomodate specific customer needs. There will be a price impact, NRE, and typically a MOQ of 10 pieces. Please contact our applications team to discuss your ideas.
